Modular AI Data Centers

AI Modular Data Centers Catalog

No two data centers are alike. QBlocks in-house design capabilities allow for purpose-built supercomputing power for your specific targeted workloads. Below you'll find the building blocks we use to design, build, and optimize a traditional data center, a modular data center and custom solutions.

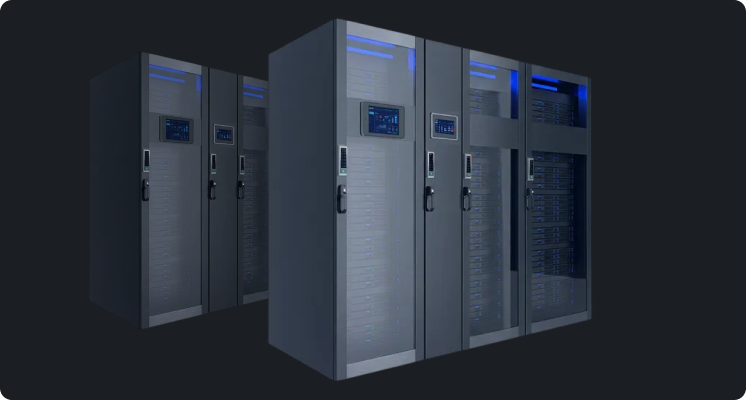

Traditional Data Center/Retrofit Racks

Single or multiple AI racks designed to integrate into your existing data center facility. Ideal for adding AI/HPC capability without building new infrastructure.

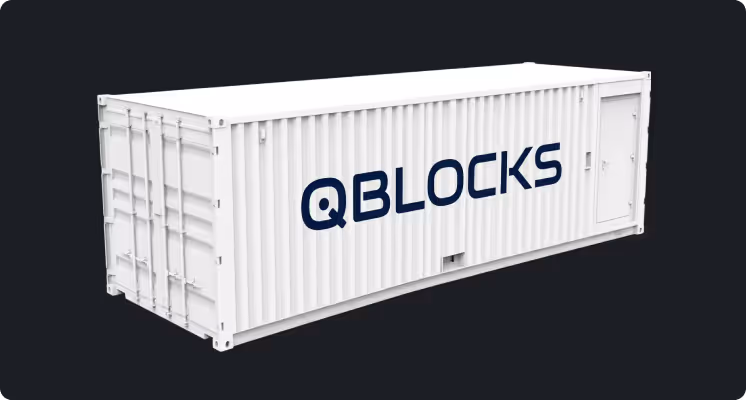

20/40 FT MDCs

Self-contained modular data centers in standard shipping containers. Turnkey solution with cooling, power, and security – deploy anywhere in weeks.

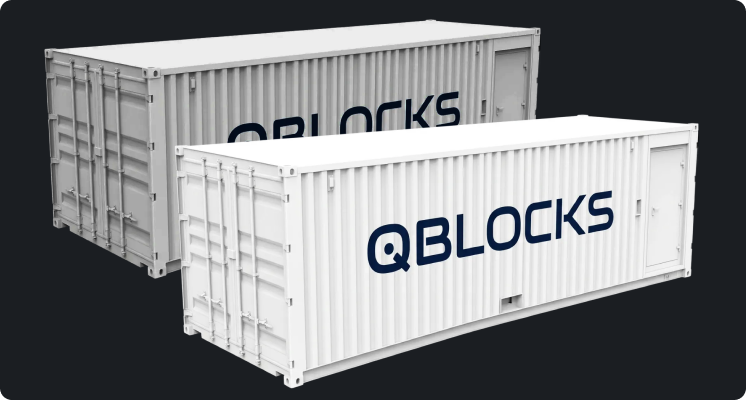

Custom MDCs

Large-scale custom configurations for maximum compute density. Purpose-built solutions tailored to your specific workload and performance requirements.

Air Cooling

Specification
AI Racks
Servers
Accelerators
Power

Trad. DC/Racks
starting with 1
8
up to 256
90 kW

20/40 FT MDCs
14
112
up to 3,584
1,204 kW

Custom MDCs
28
224
7,168
2,282 kW

Liquid Cooling

Specification
AI Racks
Servers
Accelerators
Power

Trad. DC/Racks
starting with 1
up to 12
up to 96
up to 165 kW

20/40 FT MDCs
up to 11
up to 132
1,056
1,815 kW

Custom MDCs
starting at 264
starting at 264
starting at 2,112
3,630 kW

AI Modular Data Centers

As a NVIDIA Mobile AI Factory strategic partner, QBlocks’s product expansion focuses on the high-performance computing needs of AI applications. All of QBlocks products for NVIDIA AI factories are based on the industry leading NVIDIA Blackwell Architecture.

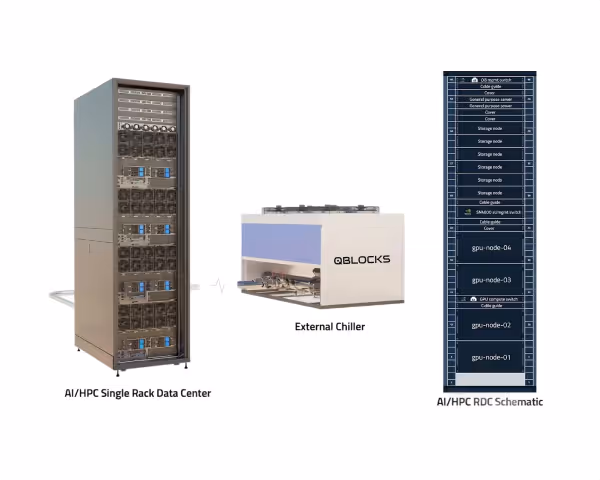

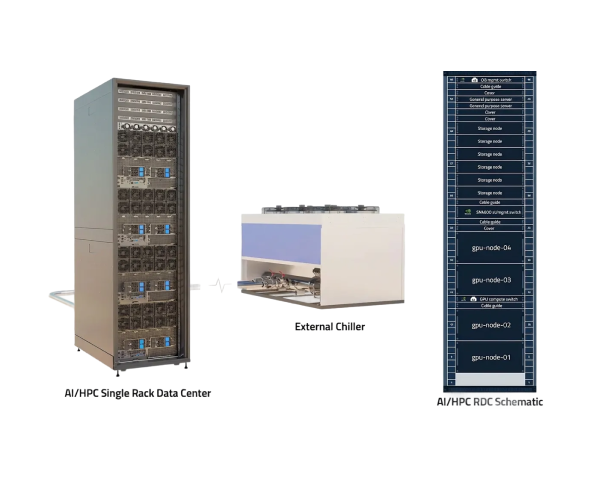

QBlocks AI Rack Data Center (RDC)

A Complete AI/HPC Data Center in a Single Rack

The QBlocks RDC is the ultimate in performance for new AI/HPC data centers or for retrofitting an existing in-building data center. The turnkey solution includes four to eight NVIDIA H200 HGX high density compute racks (32-64 GPUs), additional management and storage servers, and high-speed storage and GPU compute networks.

The single wide rack features a rear door heat exchanger (RDHx) requiring an external, free-standing air-cooled chiller or integration with an existing cooling system.

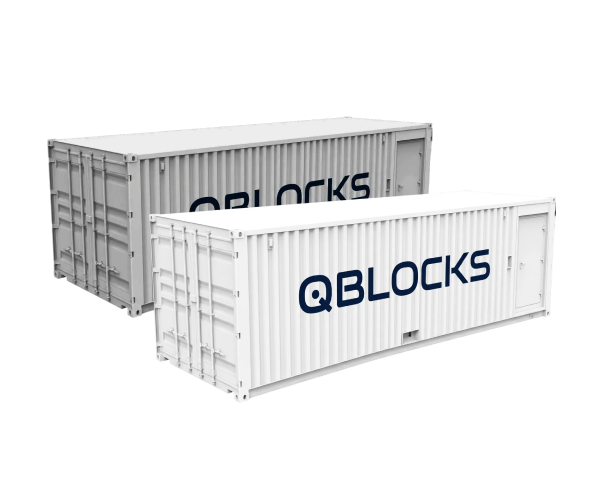

QBlocks AI Modular Data Center (MDC) with 512 H200 GPUs

Turnkey 40-foot MDC with NVIDIA H200 Air Cooled Servers and RDHx Racks

The QBlocks 40-foot Modular Data Center (MDC) is a turnkey solution with 64 NVIDIA H200 air cooled GPU server nodes (512 GPUs) in rear door heat exchanger (RDHx) racks.

This complete solution also contains a high speed storage network for management and data transfer, an out-of-band management network, a fire suppression system, security system, the QBlocks DCIM management platform, installation, setup and 3-year warranty.

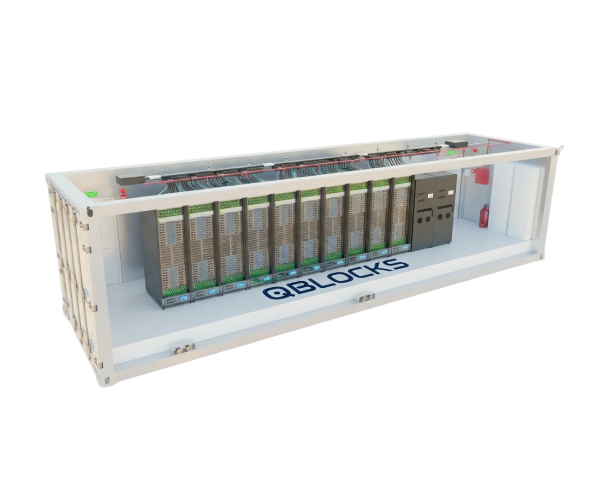

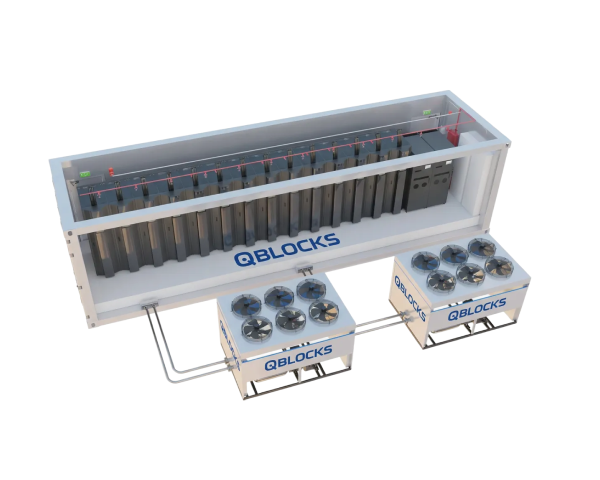

QBlocks AI Modular Data Center (MDC) with up to 720 Blackwell GPUs

Turnkey 40-foot MDC With 360 NVIDIA Blackwell Direct Liquid Cooled (DLC) Servers

This QBlocks MDC (Tier II is standard, Tier III optional) is equipped with up to 10 racks containing 72 NVIDIA Blackwell GPU compute servers with a DLC system and all UPS and supporting systems. An additional rack cabinet includes servers for management and storage. The turnkey solution also contains a fire suppression system, security system, the QBlocks DCIM management platform, installation, setup and warranty.

This 40-foot MDC architecture natively supports the current GB200 and upcoming NVIDIA Blackwell Ultra (GB300 available in 2026) and AMD Mi350/Mi400 generation (available in 2025-2026).

Flagship

QBlocks Containerized Supercomputer

These custom design solutions are based on NVIDIA Hopper Blackwell and Blackwell Ultra, as well as upcoming Vera Rubin individual servers and racks.

We work closely with national Supercomputer centers around the world to design and implement world-leading architectures, including performance optimizations for applications and Top500 / Green500 benchmarking.

We design and build LEGO-like, modular, and portable supercomputers, data centers, and workstations tailored to meet our clients' needs. Our systems stand out by consuming 25% less energy and offering 35% more IT rack space compared to standard options. We also create our own cooling solutions, compatible with all environments and climates. Pricing varies based on the specific specifications and requirements of each project.

QBlocks AI Servers

QBlocks offers a variety of configuration options. All configurations come with up to 5 years of warranty. Options that include a liquid cooling system are available with up to 8 years of warranty. All options include a fully featured AI Factory Suite and a 5-year NVIDIA Enterprise Standard suite license with an optional upgrade to Enterprise Premium.

- AI Inference Server - Entry Level
- AI Inference Server - Mid-range
- AI Inference Server - High Performance
- High Performance AI Inference and Training Server - Entry Level
- High Performance AI Inference and Training Server - Mid-range
- High Performance AI Inference and Training Server - High End
- High Performance AI Inference and Training Server - Pinnacle

Qlose AI Integration

Every product can be supplied with or without Qlose AI – our enterprise AI software platform.

With Qlose AI

Complete AI-ready solution including:

• Enterprise RAG (Retrieval-Augmented Generation)
• No-code AI deployment tools
• CRM/ERP integration modules
• Business process automation
• Private LLM hosting
• Multi-model orchestration
• DCIM and infrastructure management

Without Qlose AI

Bare infrastructure for organizations with existing AI/ML pipelines, custom software stacks, or specific platform requirements.

• Bring your own AI/ML stack
• Full infrastructure control
• Custom software deployment

Ready to Own Your AI Data Now?

Talk to our team about your infrastructure needs – from a single deploymentto a national sovereign AI program.

Thank you! Your submission has been received!

Oops! Something went wrong while submitting the form.

Or reach us directly via email – contact@qblocks.ai

Frequently Asked Questions

What's the difference between RDC and MDC?

RDC (Rack Data Center) is a single high-performance rack with 32 GPUs – ideal for proof-of-concepts or adding AIcapability to existing data centers. MDC (Modular Data Center) is a complete self-contained facility in a shippingcontainer with 80-576 GPUs, cooling, power, and all supporting systems included.

What are the site requirements?

RDC requires standard data center environment with external chiller. MDC requires a level foundation, adequate powersupply, network connectivity, and clearance for cooling systems. Our team provides detailed requirements during planning.

What support and warranty is included?

Standard configurations include 3-year Tier II warranty covering hardware and systems. Extended warranty and Tier IIIsupport packages are available.

How long does deployment take?

Typical deployment is 3 months from order to operational status. This includes manufacturing, shipping, sitepreparation guidance, installation, and commissioning.

Can these systems operate in extreme climates?

Yes. Our cooling systems are designed for global deployment – from high-temperature desert environments to cold-climate installations.

Do I need Qlose AI, or can I use my own software?

All products work with or without Qlose AI. If you have existing AI/ML pipelines or prefer specific platforms, we deliverbare infrastructure. If you want a complete solution, Qlose AI provides enterprise-ready AI tools out of the box.

Can MDC be relocated after installation?

Yes. MDCs are designed for portability. They can be disconnected, transported, and redeployed at new locations.

Can I expand capacity later?

Yes. Add storage to existing units, upgrade to Tier III systems, or deploy additional RDC racks or MDC containers.All QBlocks products use consistent architecture.
